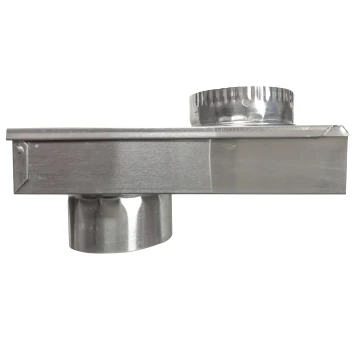

Zero Periscope™ 0-5-in

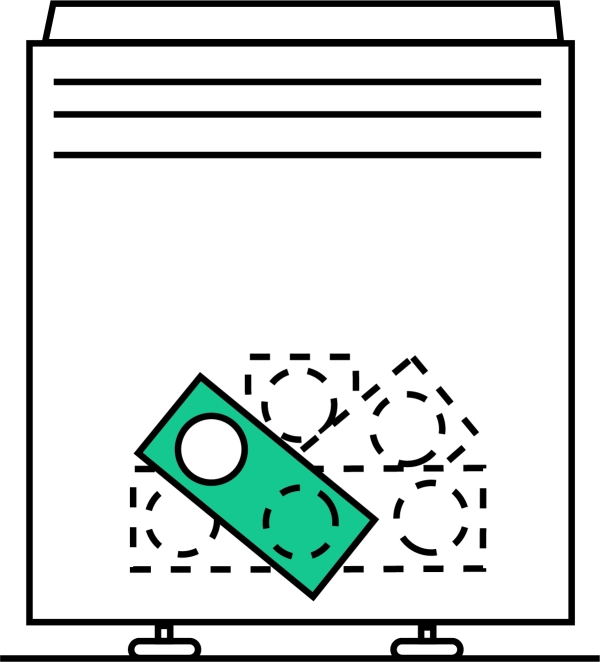

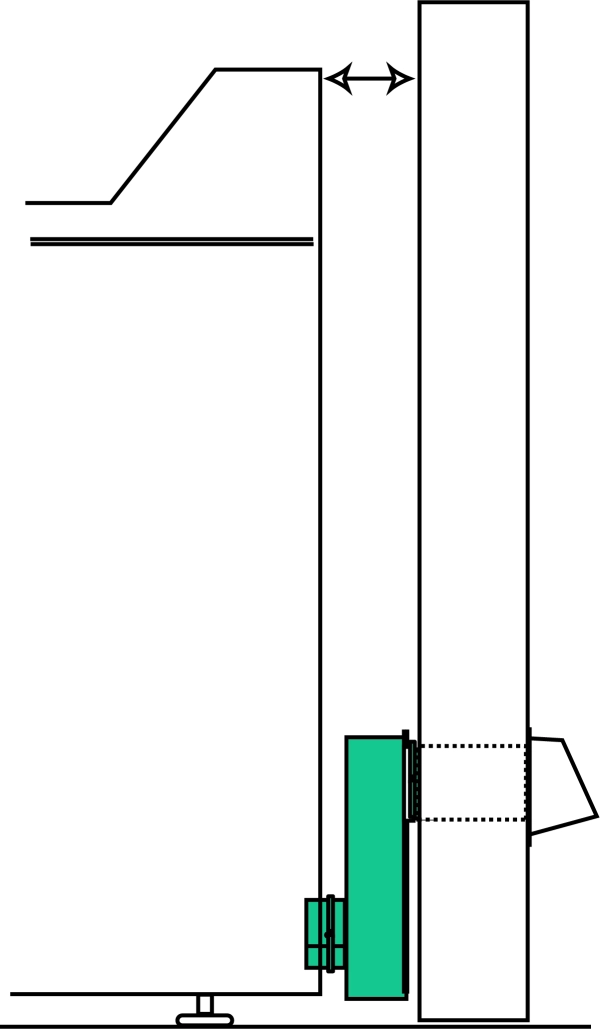

The Zero Periscope™ is a rigid aluminum clothes dryer duct which telescopes from 0" to 5". It is useful when outlets overlap or are very close.
PRODUCT FEATURES

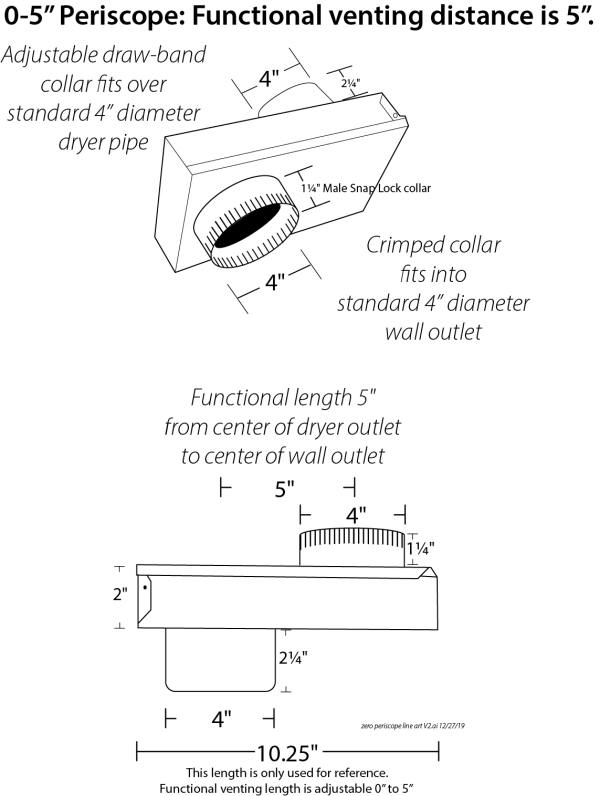

- Telescopes 0" to 5"
- Sections are not reversible
- 4” Draw band swiveling female collar for clothes dryer connection
- 4” Crimped swiveling snap-lock male fitting for wall connection
PRODUCT SPECIFICATIONS
- 2” x 6” rigid aluminum
- Smooth interior decreases air friction
- Optional baffles help direct airflow in 3-5" situations
RECOMMENDATIONS
- The International Mechanical Code recommends rigid metal duct for dryer exhaust as well as in-wall exhaust. IMC 504.6.1 & 504.8-3
- Dryer manufacturers specify “Only rigid or flexible metal vent shall be used for exhausting. Do not use plastic or metal foil vent.”
| Model | Description | Each # | Qty | Case# | Packaging | UPC | Label |
|---|---|---|---|---|---|---|---|
| Periscope 0-5" | with baffle | 10175 | 9 | 110175 | Display Card | 722048101753 | • |
| Periscope 0-5" | no baffle | 10144 | 9 | 110144 | Bulk | 722048101449 | |
| Periscope 0-5" | no baffle | 10149 | 9 | 110149 | Ind. Box | 722048101494 | • |
Additional Images
