Periscope 0-18-in

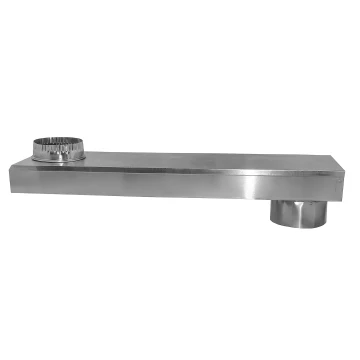

The 0-18” Periscope is a rigid aluminum clothes dryer duct designed for tight space installations. Its two-piece, non-reversible telescoping design allows precise adjustment for close dryer-to-vent connections. A part of the SAF-T-DUCT® Dryer Venting Series.
PRODUCT FEATURES
- Two piece assembly
- Sections are NOT reversible,
- Smooth interior decreases air friction
PRODUCT SPECIFICATIONS
- 2” x 6” rigid aluminum
- 4” Draw band swiveling female collar
- 4” Crimped swiveling snap-lock male fitting
RECOMMENDATIONS
- The International Mechanical Code recommends rigid metal duct for dryer exhaust as well as in-wall exhaust. IMC 504.6.1 & 504.8-3
- Dryer manufacturers specify “Only rigid or flexible metal vent shall be used for exhausting. Do not use plastic or metal foil vent."
PERFORMANCE DATA AND AIRFLOW
- Pressure Rating: Positive: 6” WC max Negative: 6” WC max Maximum velocity: 5,000 FPM Operating Temp. Range: -100˚F to+ 430˚F
- Flame Spread:0
- Smoke Developed: 0
INSTALLATION:
(Installation instructions are included inside each carton.)
Periscopes provide nearly the same airflow properties as one semi-rigid metal flexible pipe with two Close Elbows®.
Video
| Model | Length | Note | Each # | Qty | Case # | Package | UPC | UPC Labeled? |
|---|---|---|---|---|---|---|---|---|
| Periscope | 0-18" | with baffle | 10172 | 4 | 110172 | Display Box | 722048101722 | • |
| Periscope | 0-18" | with baffle | 10128 | 4 | 110128 | Display Bag | 722048101289 | • |
| Periscope | 0-18" | with baffle | 10128 | 8 | 010158 | Display Bag | 722048101289 | • |
| Periscope | 0-18" | with baffle | 10146 | 8 | 110146 | Bulk | 722048101463 | |
| Periscope | 0-18" | with baffle | 10148 | 4 | 110148 | Ind. Box | 722048101487 | • |
| Periscope | 0-18" UL® | with baffle & UL® 2158A | 12276 | 4 | 112276 | Ind. Box | 722048122765 | • |
Additional Images
